Magnetic Hex Chuck Drivers – Color Coded
Malco precision fit and hardened Magnetic Hex Chuck Drivers, with 1/4-inch power insert shanks, meet on-the-job demands for performance and service life whether installed on a power drill or used with a CONNEXT Quick Change Handle. Hex Driver sizes are color coded for easy identification and are available in shorts, longs and extra long sizes.
Specifications
Catalog Number |
Description |
Hex Opening in. |
Insert Dia. in. (mm) |
Nose Dia. in. (mm) |
Overall Length in. (mm) |
Color Coded |
| MSH14 | Short Magnetic Hex Driver | 1/4 | 1/4 (6.365) | 7/16 (11.1125) | 1-3/4 (44.45) | Red |
| MSH516 | Short Magnetic Hex Driver | 5/16 | 1/4 (6.365) | 1/2 (12.7) | 1-3/4 (44.45) | Yellow |
| MSH38 | Short Magnetic Hex Driver | 3/8 | 1/4 (6.365) | 9/16 (14.2875) | 1-3/4 (44.45) | Blue |
| MSHL14 | Long Magnetic Hex Driver | 1/4 | 1/4 (6.365) | 7/16 (11.1125) | 2-9/16 (65.0875) | Red |
| MSHL516 | Long Magnetic Hex Driver | 5/16 | 1/4 (6.365) | 1/2 (12.7) | 2-9/16 (65.0875) | Yellow |
| MSHL38 | Long Magnetic Hex Driver | 3/8 | 1/4 (6.35) | 9/16 (14.2875) | 2-9/16 (65.0875) | Blue |
| MSHL716 | Long Magnetic Hex Driver | 7/16 | 1/4 (6.35) | 11/16 (17.4625) | 2-9/16 (65.0875) | Brown |

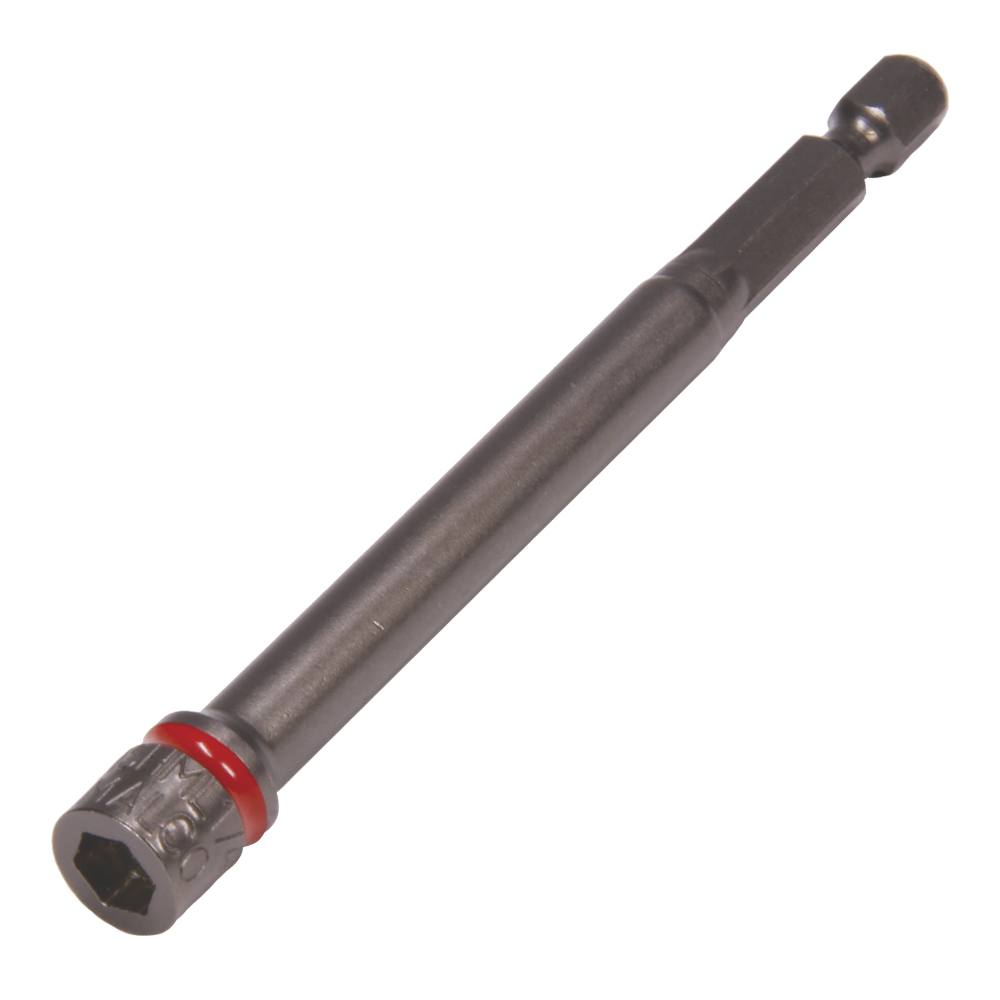

| MSHML14 | Extra Long Magnetic Hex Driver | 1/4 | 1/4 (6.365) | 7/16 (11.1125) | 4 (101.6) | Red |
| MSHXL14 | Extra Long Magnetic Hex Driver | 1/4 | 1/4 (6.365) | 7/16 (11.1125) | 6 (152.4) | Red |
| MSHML516 | Extra Long Magnetic Hex Driver | 5/16 | 1/4 (6.365) | 1/2 (12.7) | 4 (101.6) | Yellow |
| MSHXL516 | Extra Long Magnetic Hex Driver | 5/16 | 1/4 (6.365) | 1/2 (12.7) | 6 (152.4) | Yellow |
| MSHXL38 | Extra Long Magnetic Hex Driver | 3/8 | 1/4 (6.35) | 9/16 (14.2875) | 6 (152.4) | Blue |
FAQs
Why does the driver have a colored ring on it?
The colored ring helps to identify the hex opening size of the driver. Red (1/4”), Yellow (5/16”), Blue (3/8”), Brown (7/16”)
Are all pieces of Connext interchangeable?
Yes, the drivers will work on either the large or stubby handle.
Can the drivers be used on power drills?
Yes, they have a power driver groove so they will connect to any drill that accepts 1/4” shanks.
Are there kits available?
Yes, we offer various Connext Kits here: Hex Driver Kits
Are all pieces available individually or only as complete drivers?
The Connext offering is available as a complete tool or as pieces.
Are the handles durable?
They are made of clear, molded acetate providing shock-proof, shatter-proof and a fluted design to fit any hand comfortably.
Can the handles be used with drivers that are not part of the Connext offering?
Yes, the handles have a quick-connect holder mechanism to accept and ¼” shank chuck driver.
Do the drivers stay securely attached to the handle?
Yes, the drivers are attached with a connecting feature that includes a locking function. The only way to detach is to disengage the locking function.
