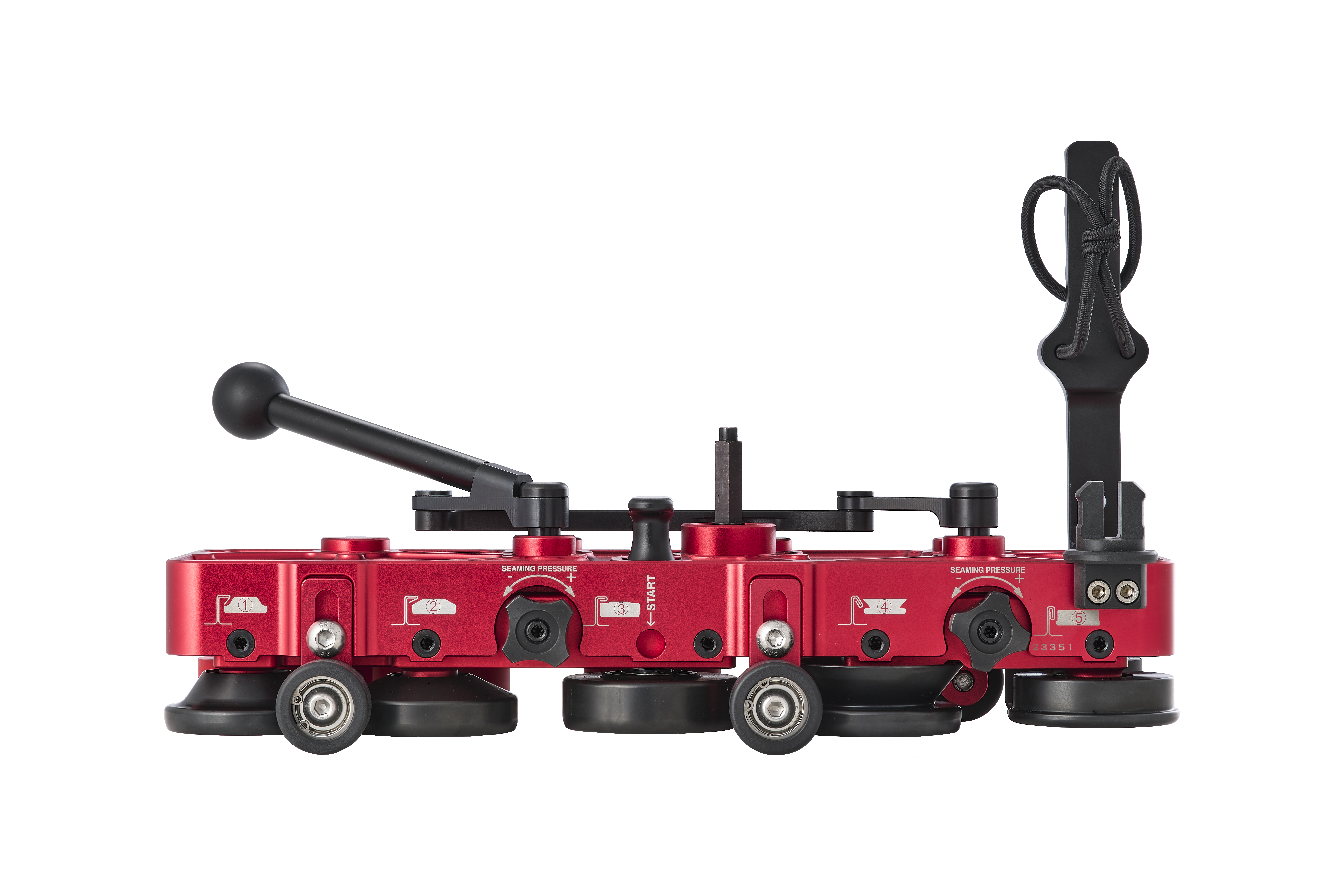

Standing Seam Seamer, 1.5 Inch FSXS

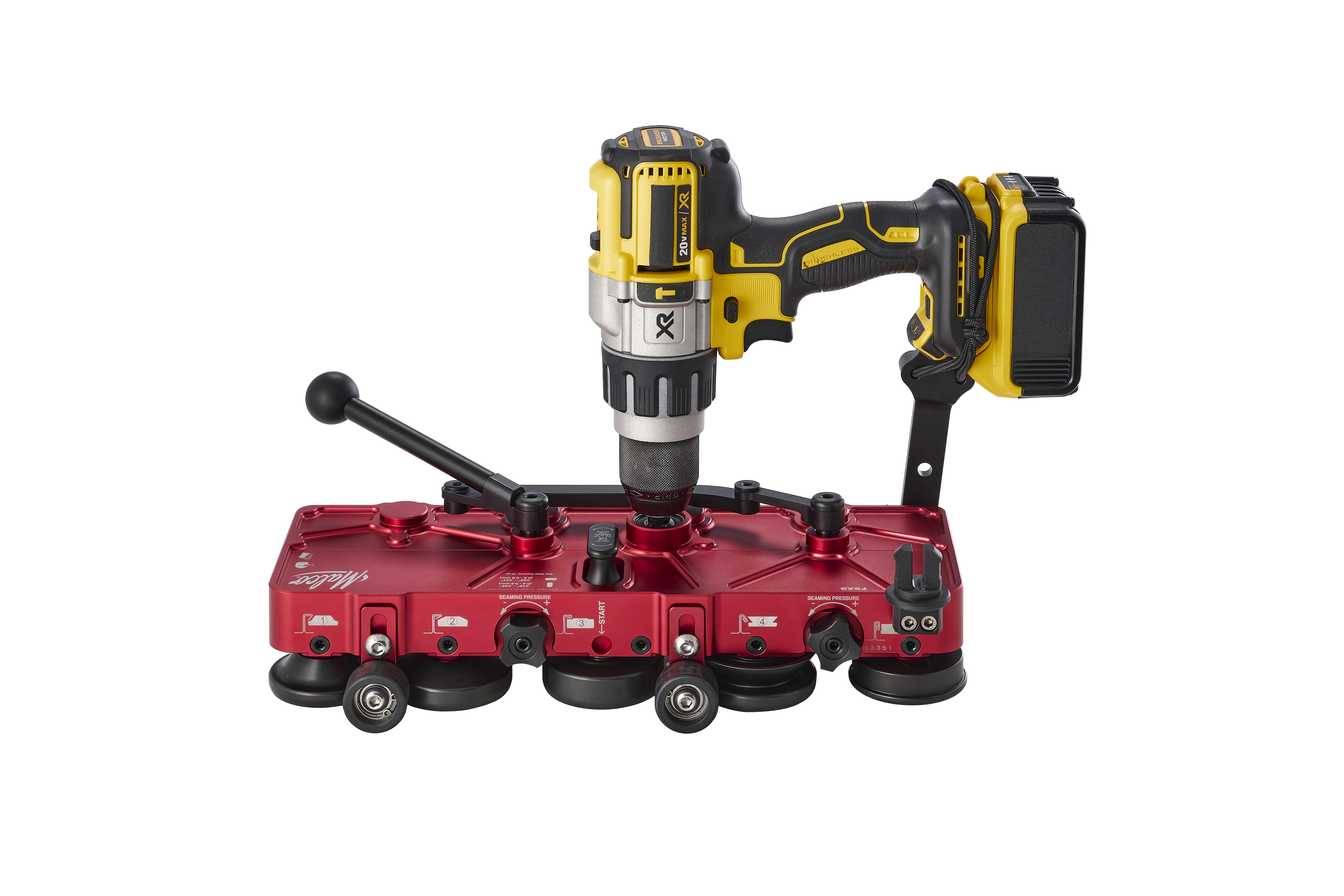

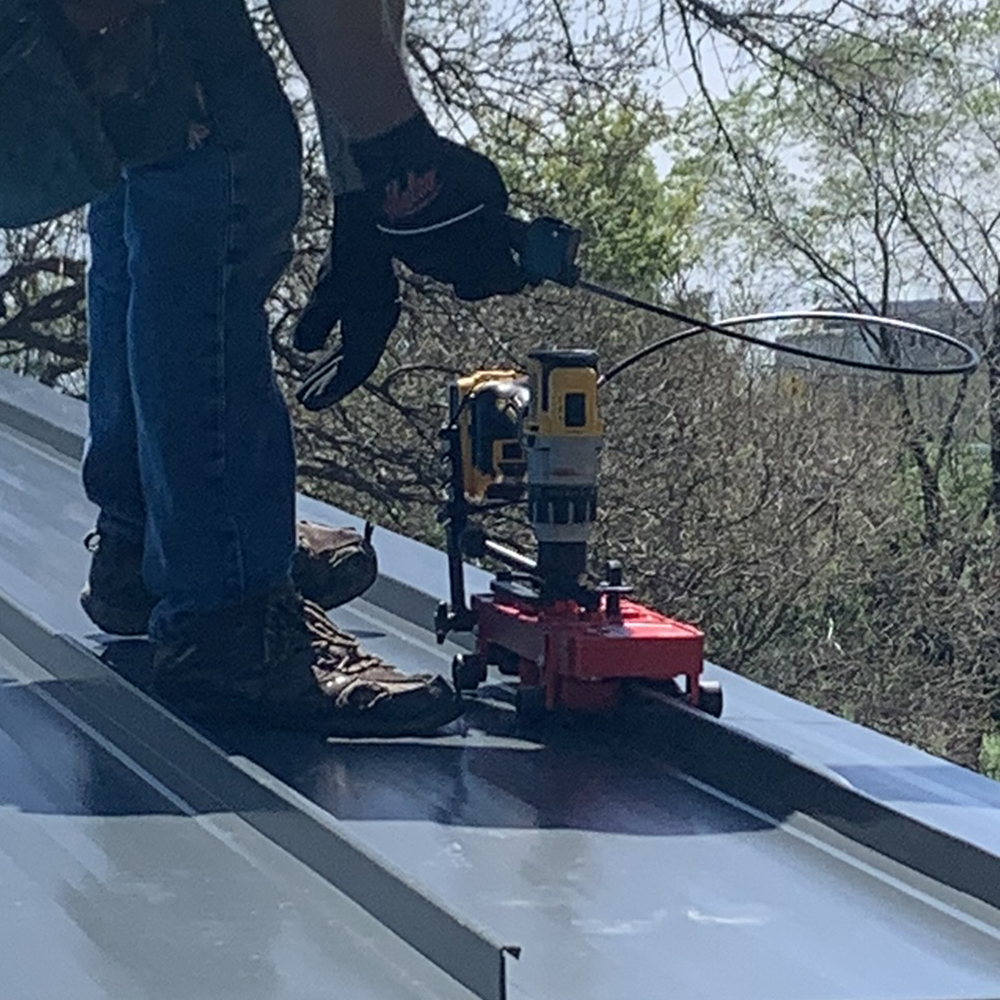

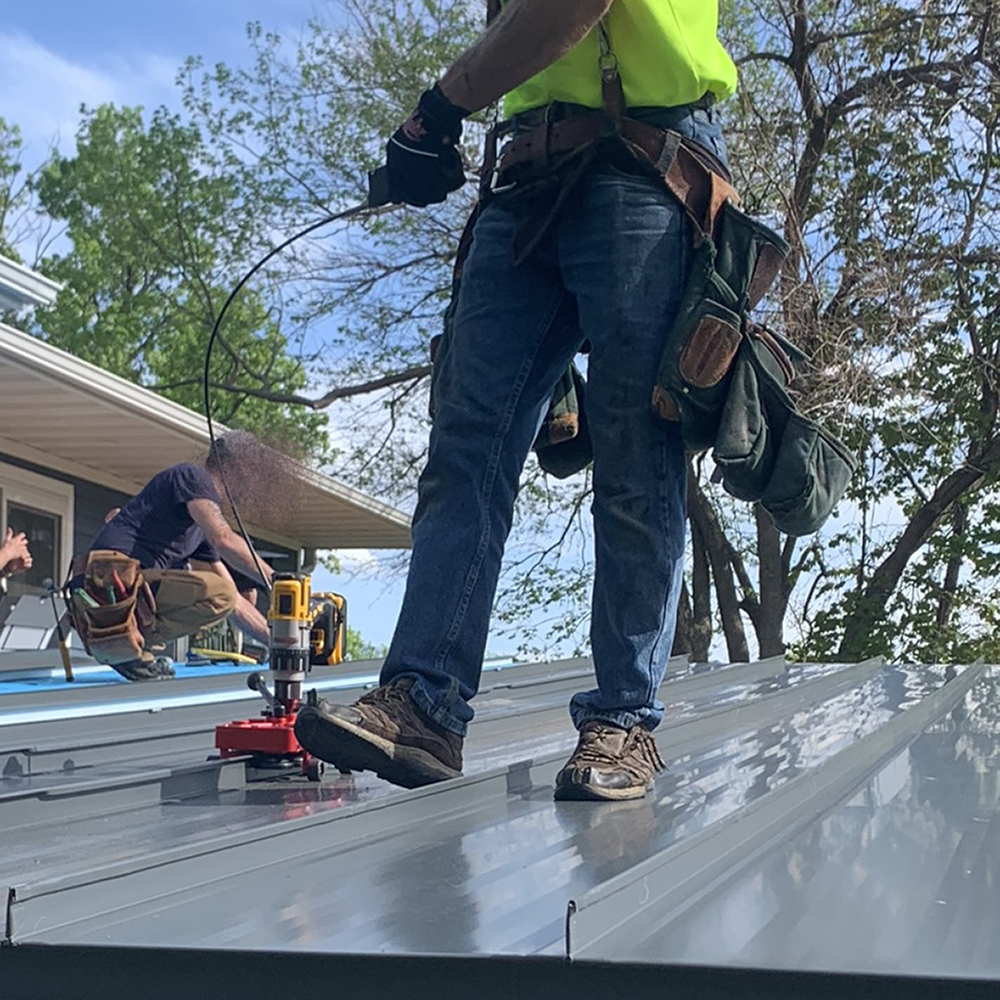

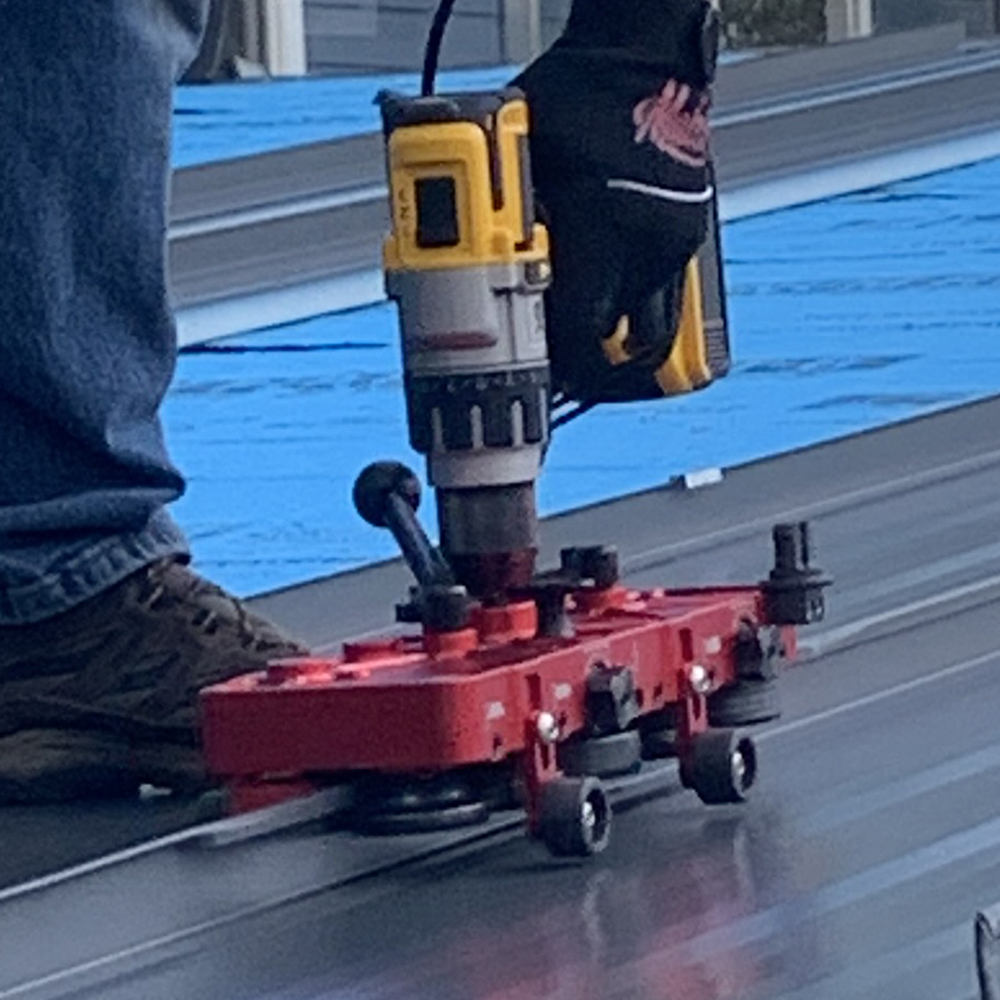

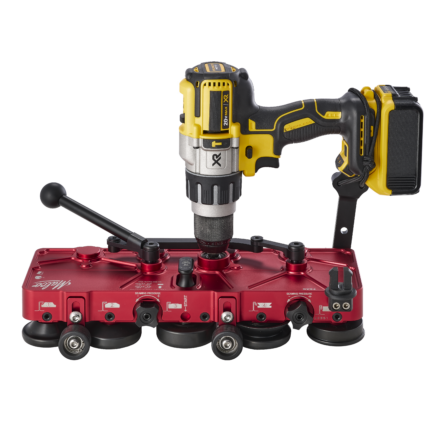

Malco’s power assisted seamer is the fastest seaming machine in the market, making it the perfect hand-held equipment for effortless seaming of 1″ or 1.5″ single and/or double mechanical lock standing-seam panels in one efficient operation, with no hand seamer required. Simply attach the power assisted seamer to your cordless drill, for a max speed of 98-feet/min (30 m/min) and 1076 sq. feet/7 min (100 m2/7 min).
Designed to start the seaming process from the beginning of the metal profile without having to use a hand seamer.

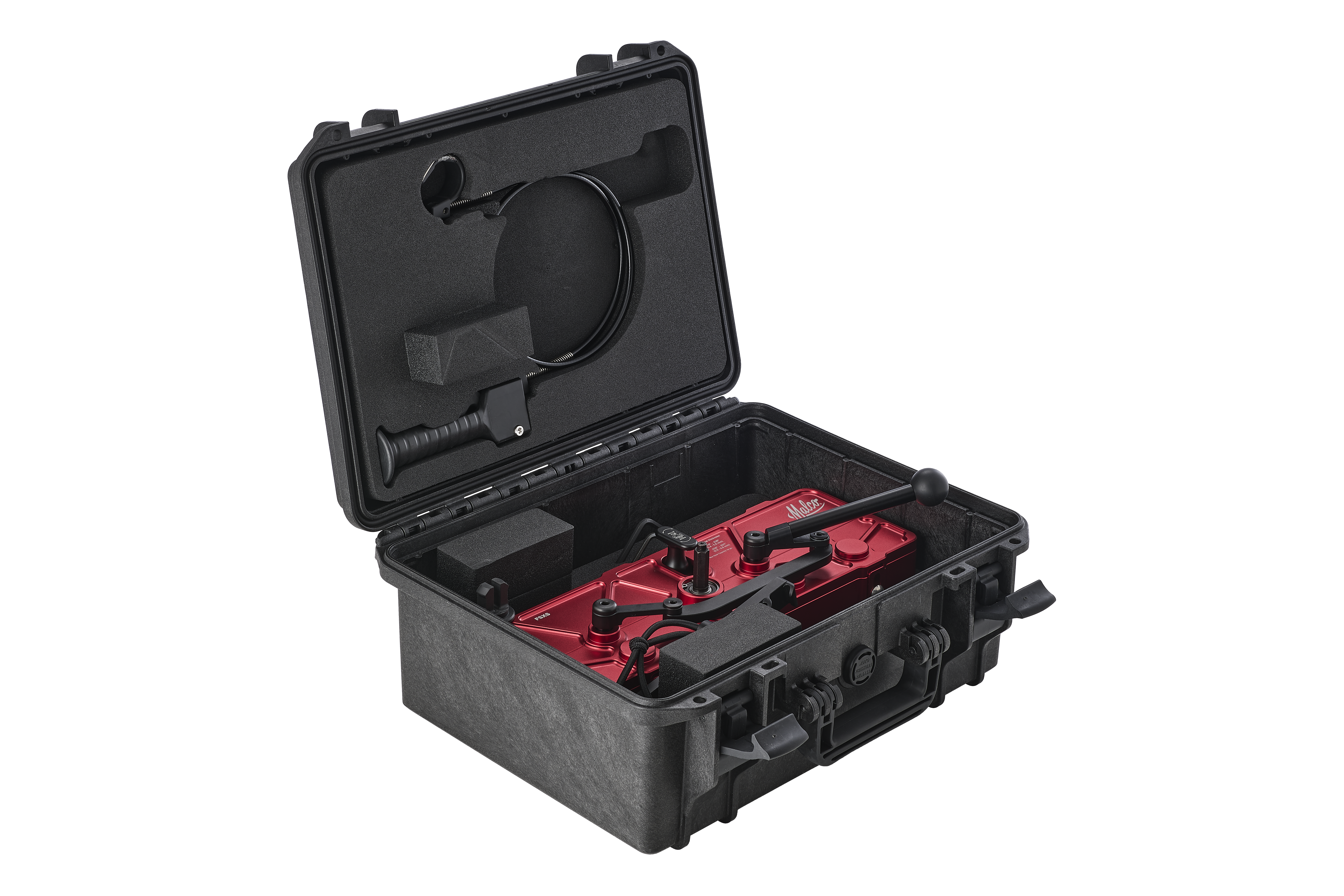

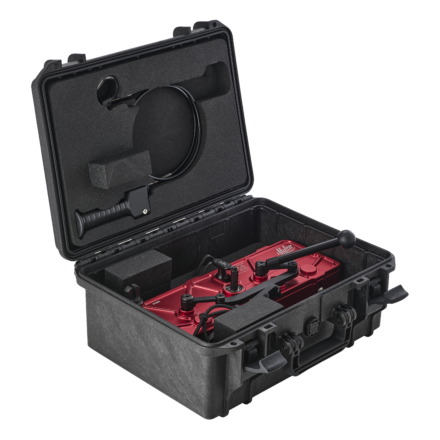

The Malco Power Assisted seamer comes packaged in a premium IP 67 case with custom foam inserts to ensure the safe storage of your seamer. Designed for the roofing professionals working with Stainless steel, steel, Aluminum, Copper, and Zinc material.
Quote repair and retrofit jobs with confidence knowing that the material your customers want on their roof is something you can install.
View the factory approved replacement drive wheels here: FSXSRPDW
Features
- Mechanically lock standing seam panels in less time, while working safer, and offering your customers more profiles
- Standing seam installation solution of choice to lock standing seam panels safely and in less time
- Seam 1″ and 1.5″ standing seam panels in a single or double lock, allowing you to quote and install more jobs with one tool solution
- Driven by contractor grade cordless tools there are no cords to manage or restrict your movement
- Instruction Guide: FSXS Seamer Instructions
Specifications
| Catalog Number | Description | Seaming Capacity: Steel | Seaming Capacity: Stainless Steel | Seaming Capacity: Aluminum | Seaming Capacity: Copper | Seaming Capacity: Zinc |
| FSXS | Power Assisted Metal Seamer, 1″ / 1.5″ | 24-Gauge | 26-Gauge | .040 | 20 oz | 1 mm |
| FSXSRPDW | Replacement Drive Wheels | — | — | — | — | — |
FAQs
Please refer to the Troubleshooting Guide if you are having any issues operating your product.
What do I do if I am having trouble getting the tool to drive itself forward?
If the roof is wet, the tools will not drive consistently. You will need to dry the roof before seaming the panels.
Other typical issues with the seamer are often related to the seaming pressure adjustment to little pressure, will result in the tool failing to feed while too much seaming pressure will lead to deformed or crushed finished seams.
Will correctly adjusting pressure knobs during use reduce premature wear of the drive wheels?
Yes! Verify seaming pressure knobs are adjusted properly to obtain the desired finished seam. Over tightening these adjustment knobs can result in unnecessary contact forces on the drive wheels resulting in premature wear.
What direction should I be operating the seamer when seaming panels?

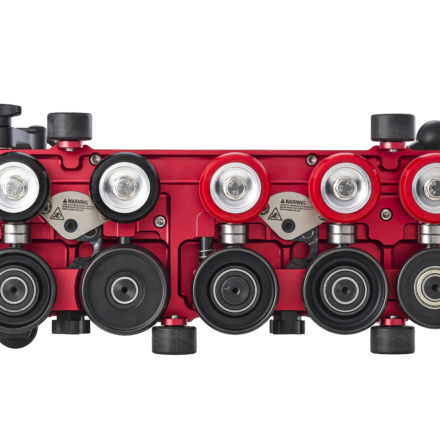

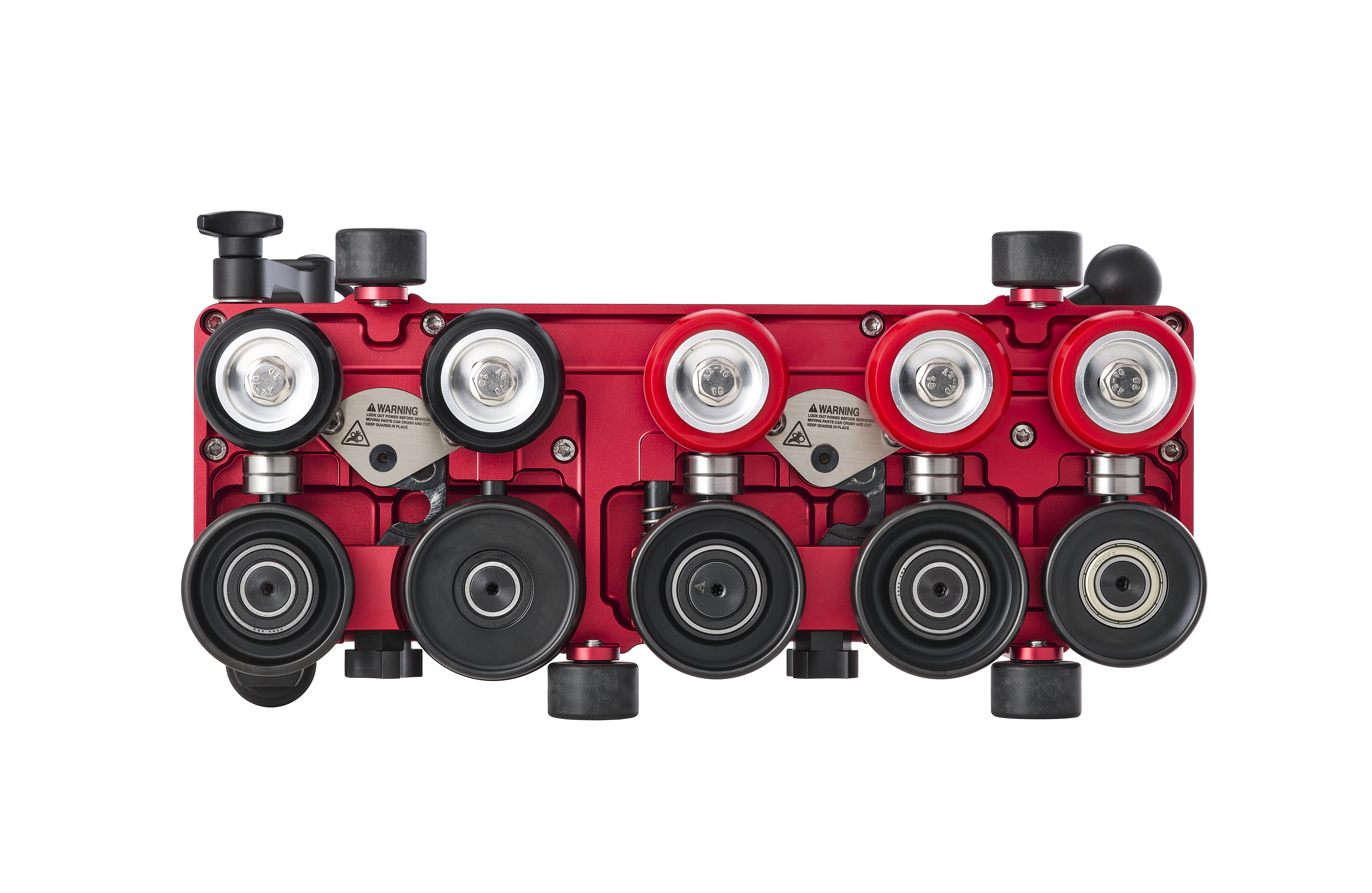

Premature drive wheel failures are often related to attempting to seam panels in the incorrect direction. The drive wheels need to ride along the vertical leg of the panel and the form wheels need to be positioned to close the open seam.
